Just browsing the various sites and saw this.
http://egun.de/market/item.php?id=5423150
What is the Brenneke patent for?
-------------------- .
|
Igorrock
.400 member
Reged: 01/03/07
Posts: 1684
Loc: Finland
|
|
In my eyes it looks like a kind of trigger safety.
-------------------- http://promaakari.wordpress.com/
|
John303
.300 member
Reged: 16/11/06
Posts: 243
Loc: Canada
|
|
I'll guess some sort of set trigger. --- John
|
Igorrock
.400 member
Reged: 01/03/07
Posts: 1684
Loc: Finland
|
|
It seems that this rifle soon has set drigger with two trigger so IMO it doesn't need two of them. But of course I could be wrong....
-------------------- http://promaakari.wordpress.com/
|
93x64mm
.416 member
Reged: 07/12/11
Posts: 4410
Loc: Nth QLD Australia
|
|
Ash , Wilhelm Brenneke was a pretty talented bloke, had a few patents for various mods to rifles & of course the family x64mm.
http://www.deutsches-jagd-lexikon.de/index.php?title=Brenneke,_Wilhelm
Jack Lott wrote a fair sized article on him & also small blurb on the 9.3x64mm in a magazine "big bore rifles" - I have that in .pdf form, but she's pretty tattered! Were good articles - Jack Lott was a rather good writer! Let me know if you want them, will take time to dig up Cheers 93x64mm
|
Ash
.400 member
Reged: 10/05/11
Posts: 1654
Loc: Australia
|
|
Sure, love them! My email is in my profile
I thought it was a safety too. Wouldnt mind an original 9.3x64 Brenneke
-------------------- .
|
Waidmannsheil
.416 member
Reged: 19/04/13
Posts: 2517
Loc: Melbourne Australia
|
|
9.3x64, I would be very interested in reading your PDF as well, maybe it is something you could post.
Waidmannsheil.
-------------------- There is nothing wrong with vegetarian food, so long as there is meat with it.
|
kuduae
.400 member
Reged: 13/01/10
Posts: 1806
Loc: middle of Germany
|
|

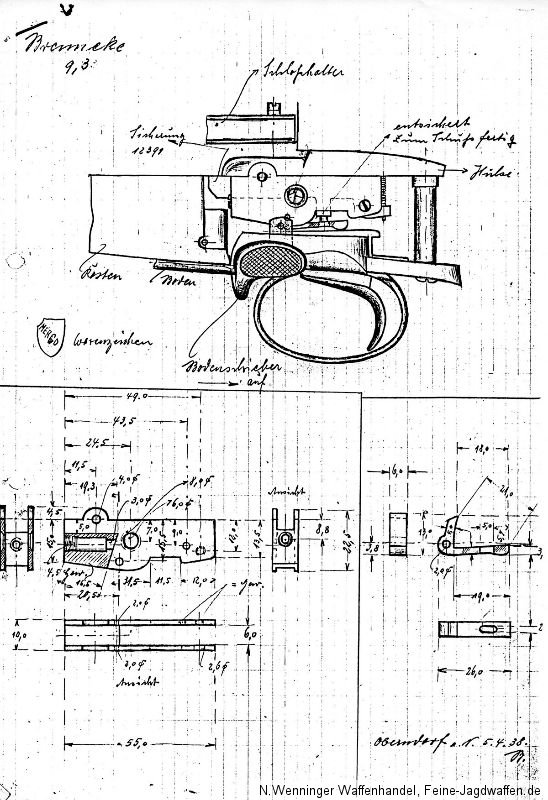

This rifle shows no less than four Brenneke "improvements". I have seen all of them before on "Original Wilhelm Brenneke, Leipzig" rifles. BTW most of these rifles have the tiny ESHA stamp of the real maker who made them for Brenneke, Schmidt & Habermann, Suhl, in a hidden place. But some of the "Brenneke improvements" were actually designed by Albert Oskar Merkel, Judithstr. 60, Suhl. Oskar Merkel left his brothers Gebrueder Merkel company in 1908 to set up his own gunmaking company. Note his Warenzeichen = trademark "MERCO in shield" in one of the drawings. Brenneke had the thumbhole in the left receiver wall welded shut, way before Mauser made sporters with solid receiver walls. The small box, fastened with two srews to the right side of the bridge, contains a spring and plunger that engage the bolt handle to keep it from being raised inadvertedly.

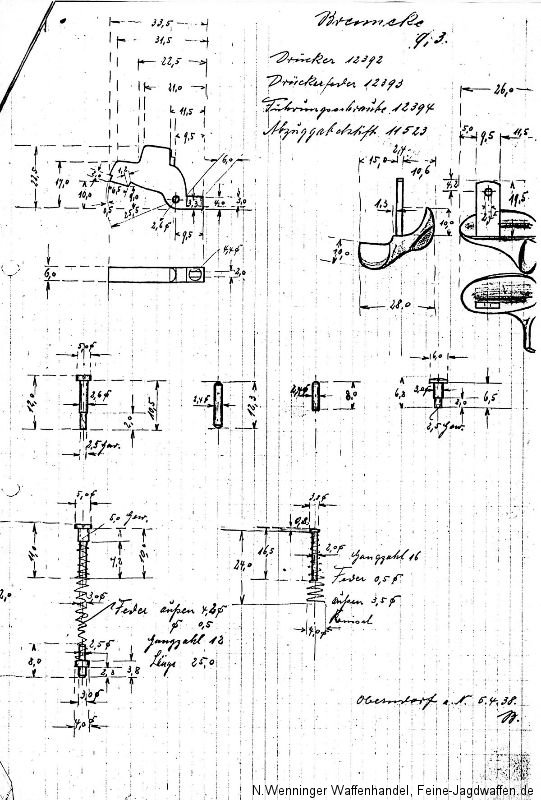

The Oskar Merkel designs shown in the drawings are An override trigger assembly, similar in function to later American designs like the Timney. This markedly improves the pull of the unset double set trigger when used in an emergency or on running game. In the drawing it and it's parts are shown with a single, shotgun style trigger blade hinged in the triggerguard, but on the rifle offered it is combined with an additional double set trigger. Oskar Merkel also designed that unusual floorplate latch with that giant thumbpiece, as shown on rifle and in drawing. IMHO all, maybe except the override trigger, rather doubtful "improvements" of the basic Mauser M98 action.
|
Igorrock
.400 member
Reged: 01/03/07
Posts: 1684
Loc: Finland
|
|
Thanks kuduae, now we don't need to wonder anymore.
